PhotoZ¶

class eazy.photoz.PhotoZ(param_file=None, translate_file=None, zeropoint_file=None, load_prior=True, load_products=False, params={}, n_proc=0, cosmology=None, compute_tef_lnp=True, tempfilt=None, tempfilt_data=None, random_seed=0, random_draws=100, **kwargs)[source]¶

Bases: object

Main object for fitting templates / photometric redshifts

Parameters:

param_filestr

Parameter filename. If nothing specified, then reads the default parameters from file eazy/data/zphot.param.default.

translate_filestr

Translation filename for eazy.param.TranslateFile.

zeropoint_filestr

File with catalog zeropoint corrections with read_zeropoint

load_priorbool

Compute the apparent-magnitude prior

load_productsbool

Load previously-generated eazy products if zout and data files are found (load_products)

paramsdict

Run-time parameters that supersede parameters read from param_file. The parameters are set in the following order:

Read from param_file
Add any missing parameters from file eazy/data/zphot.param.default
Override from params

n_procint

Number of processes to use for multiprocessing-enabled functions. If < 0, then get from multiprocessing.cpu_count.

cosmologyastropy.cosmology object

If not specified, generate a flat cosmology with params['H0', 'OMEGA_M', 'OMEGA_L'].

compute_tef_lnpbool

Precompute likelihood normalization correction for the TemplateError function.

tempfiltTemplateGrid or None

Precomputed template grid.

random_seedint

Random number seed for e.g., random draws from parameter covariances

random_drawsint

Number of random draws from fit coefficients used for analytic uncertainties.

Note

This can create a very large coeffs_draws array with dimensions (NOBJ, random_draws, NTEMP).

Attributes:

NOBJ: Number of objects in catalog
NZ: Number of redshift grid points
NFILT: Number of filters
NTEMP: Number of templates
pivot: Filter pivot wavelengths, Angstroms
to_flam: Conversion factor to \(10^{-19} erg/s/cm^2/Å\)
to_uJy: Conversion of observed fluxes to microJansky
paramEazyParam: Parameters
translateTranslateFile: Parsed translate_file
catTable: The raw catalog read from params['CATALOG_FILE']
OBJID: id column data from the (translated) catalog with size NOBJ
ZSPEC: z_spec column data from the (translated) catalog (or -1.)
RA: ra Right Ascension column data from the (translated) catalog
DEC: dec Declination column data from the (translated) catalog
templateslist: List of Template objects from params['TEMPLATES_FILE']
filterslist: List of FilterDefinition objects
f_numbersarray (NFILT): Filter numbers of catalog filters in params['FILTER_FILE']
flux_columnsarray (NFILT): Catalog column names of the photometric flux densities
err_columnsarray (NFILT): Catalog column names of the photometric uncertainties
fnuarray (NOBJ, NFILT): Catalog flux densities
efnu_origarray (NOBJ, NFILT): Uncertainties as read from the catalog
efnuarray (NOBJ, NFILT): Uncertainties that could have been modified by, e.g., set_sys_err. This is the array used in the template fit.
ok_databool array (NOBJ, NFILT): Filters and uncertainties that satisfy the params['NOT_OBS_THRESHOLD'] criteria.
lc_reddestarray (NOBJ): Reddest (valid) filter pivot wavelength available for each object
zparray (NFILT): Multiplicative “zeropoint correction” scaled factors, applied to fnu, efnu before fitting with the template photometry.
ext_reddenarray (NFILT): Values needed to remove MW redenning if it has been included in the input catalog (params['CAT_HAS_EXTCORR'] = True)
ext_corrarray (NFILT): MW extinction correction (<= 1)
tempfiltTemplateGrid: Grid of templates integrated through filters
RESFilterFile: The full filter file object
TEFTemplateError: Template error function object
chi2_fitarray (NOBJ, NZ): chi-squared of the template fit at each redshift grid point
fit_coeffsarray (NOBJ, NZ, NTEMP): Fit coefficients for all objects and redshifts
full_logpriorarray (NOBJ, NZ): Apparent magnitude prior from set_prior
lnp_betaarray (NOBJ, NZ): Beta prior from prior_beta
lnparray (NOBJ, NZ): Full log-likelihood grid from compute_lnp
lnpmaxarray (NOBJ): maximum of lnp(z)
zmlarray (NOBJ): Maximum-likelihood redshift evaluate_zml
ZML_WITH_PRIORbool: zml was computed with the apparent mag prior
ZML_WITH_BETA_PRIORbool: zml was computed with the beta prior
zbestarray (NOBJ): Array where fit coefficients are saved. Generally zml, but can be set to something else for, e.g., standard_output.
ZPHOT_AT_ZSPECbool: zbest computed fixing the reshift to cat['z_spec'] when available
ZPHOT_USERbool: zbest was supplied by the user
chi2_bestarray (NOBJ): chi-squared evaluated at z = zbest
coeffs_bestarray (NOBJ): Template coefficients evaluted at z = zbest
fmodelarray (NOBJ, NFILT): Flux-densities of best-fit template in same units as fnu
efmodelarray (NOBJ, NFILT): Uncertainties on fmodel from covariance matrix
coeffs_drawsarray (NOBJ, random_draws, NTEMP): Random draws from the template fit covariance matrix

Attributes Summary

`ARRAY_DTYPE`	Array data type from `ARRAY_NBITS` parameter
`DEC`	`dec` Declination column data from the (translated) catalog (or -1.) with size `NOBJ`
`MW_EBV`	Galactic extinction E(B-V)
`NDRAWS`	Number of random draws, taken from `coeffs_draws` attribute
`NFILT`	Number of filters
`NOBJ`	Number of objects in catalog
`NTEMP`	Number of templates
`NZ`	Number of redshift grid points
`OBJID`	`id` column data from the (translated) catalog with size `NOBJ`
`RA`	`ra` Right Ascension column data from the (translated) catalog (or -1.) with size `NOBJ`
`ZML_WITH_BETA_PRIOR`
`ZML_WITH_PRIOR`
`ZPHOT_AT_ZSPEC`
`ZPHOT_USER`
`ZSPEC`	`z_spec` column data from the (translated) catalog (or -1.) with size `NOBJ`
`izbest`	index of nearest `zgrid` value to `zbest`.
`izchi2`	`zgrid` index where `chi2_fit` maximized
`izml`	`zgrid` index where `lnp` maximized
`lc`	Filter pivot wavelengths (deprecated, use `pivot`)
`pivot`	Filter `pivot` wavelengths, Angstroms
`to_flam`	Conversion factor to \(10^{-19} erg/s/cm^2/Å\)
`to_uJy`	Conversion of observed fluxes to `microJansky`
`zchi2`	Redshift at `izchi2` index.

Methods Summary

`PIT`(zspec)	PIT function for evaluating the calibration of p(z), as described in Tanaka (2017).
`abs_mag`([f_numbers, cosmology, rest_kwargs])	Get absolute mags (e.g., M_UV tophat filters).
`apply_spatial_offset`(f_ix, bin2d[, xycols])	Apply a spatial zeropoint offset determined from spatial_statistics.
`cdf_percentiles`([cdf_sigmas])	Redshifts of PDF percentiles in terms of σ for a normal distribution, useful for compressing the PDF.
`compute_best_risk`()	"Risk" function from Tanaka et al. 2017.
`compute_full_risk`()	Full "risk" profile from Tanaka et al. 2017.
`compute_lnp`([prior, beta_prior, ...])	Compute log-likelihood from chi2, prior, and TEF terms
`compute_tef_lnp`([in_place])	Uncertainty + TEF component of the log likelihood
`error_residuals`([level, verbose])	Force error bars to touch the best-fit model
`evaluate_zml`([prior, beta_prior, ...])	Evaluate the maximum likelihood redshift with optional priors
`find_peaks`([thres, min_dist_dz])	Find discrete peaks in `lnp` with peakutils module.
`fit_at_zbest`([zbest, prior, beta_prior, ...])	Recompute the fit coefficients at the "best" redshift.
`fit_catalog`([idx, n_proc, verbose, ...])	This is the main function for fitting redshifts for a full catalog and is parallelized by fitting each redshift grid step separately.
`fit_parallel`(args, *kwargs)	Back-compatibility, the new function is `fit_catalog`
`fit_phoenix_stars`([filter_mask, wave_lim, ...])	Fit grid of Phoenix stars
`fit_single_templates`([templates, tempfilt, ...])	Fit individual templates on the redshift grid
`get_grizli_photometry`([id, rd, grizli_templates])	Get photometry dictionary of a given object that can be used with `grizli` fits.
`get_match_index`([id, rd, verbose])	Get object index of closest match based either on `id` (exact) or closest to specified `(ra, dec) = rd`.
`get_maxlnp_redshift`([prior, beta_prior, ...])	Fit parabola to `lnp` to get continuous max(lnp) redshift.
`iterate_zp_templates`([idx, ...])	Iterative detemination of zeropoint corrections
`lcz`([zbest])	Redshifted filter wavelengths using `zbest`.
`load_products`([compute_error_residuals, fitter])	Load results from `zout` and `data` FITS files created by `standard_output`.
`make_csv_catalog`([include_zeropoints, ...])	Make a standardized catalog table in CSV format
`observed_frame_fluxes`([f_numbers, filters, ...])	Observed-frame fluxes in additional (e.g., unobserved) filters

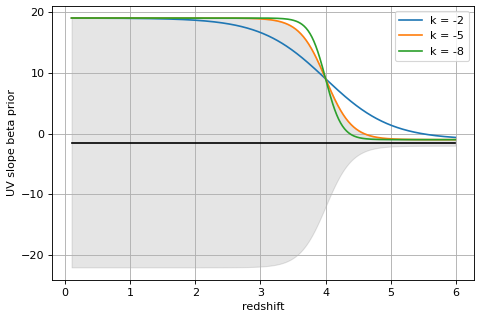

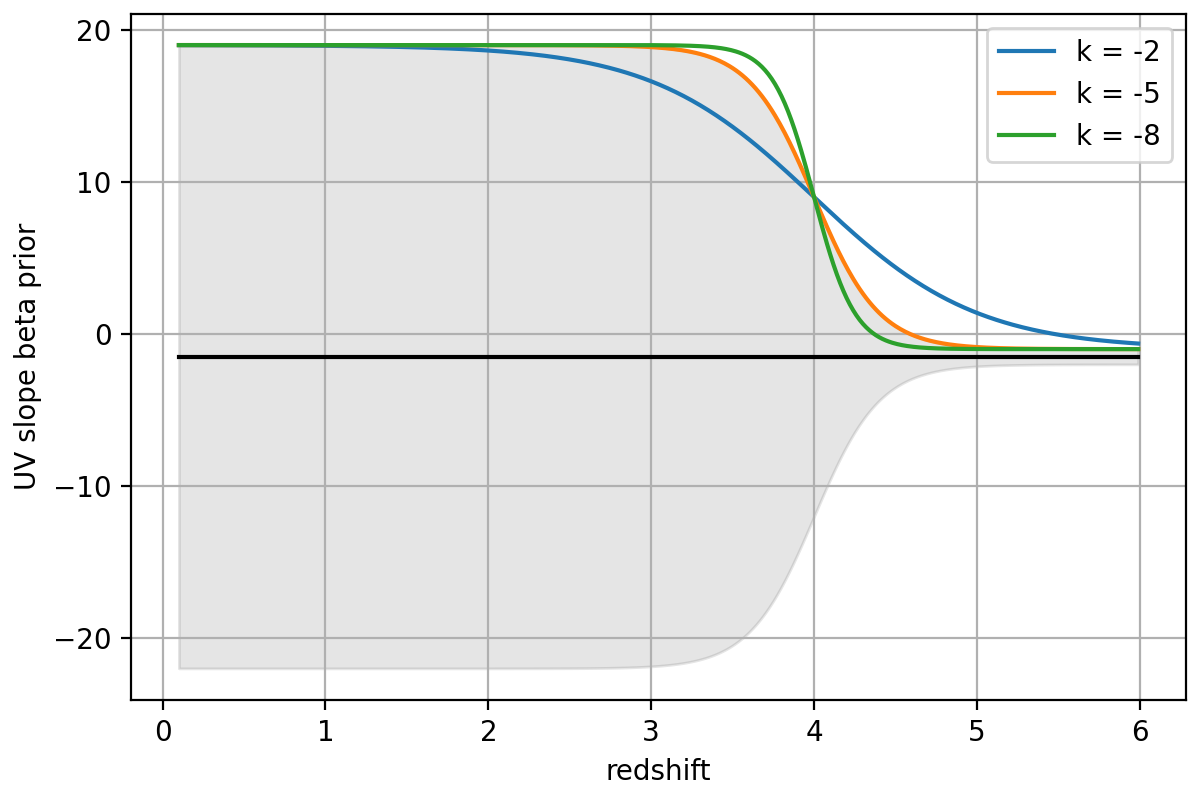

`prior_beta`([w1, w2, dw, sample, width_params])	Prior on UV slope β to disfavor red low-z galaxies put at z>4 with unphysically-red colors.
`pz_percentiles`([percentiles, oversample, ...])	Compute percentiles of the final PDF(z)
`read_catalog`([verbose])	Read catalog specified in `params['CATALOG_FILE']`.
`read_prior`([zgrid, prior_file, prior_floor])	Read an eazy apparent magnitude prior file
`read_zeropoint`([zeropoint_file])	Read zphot.zeropoint file with multiplicative flux corrections
`residuals`([selection, minsn, ...])	Show residuals and compute zeropoint offsets
`rest_frame_SED`([idx, norm_band, c, min_sn, ...])	Make Rest-frame SED plot
`rest_frame_fluxes`([f_numbers, pad_width, ...])	Rest-frame fluxes, refit by down-weighting bands far away from the desired RF band.
`save_templates`([prefix, ext, format, ...])	Write scaled versions of the templates to files, including a templates definition file
`set_ok_data`()	Determine valid catalog data:
`set_prior`([verbose])	Read `param['PRIOR_FILE']`
`set_sys_err`([positive, in_place])	Include systematic error in uncertainties from `param['SYS_ERR']`.
`set_template_error`([TEF, compute_tef_lnp])	Set the Template Error Function
`set_zgrid`()	Set `zgrid` and `trdz` attributes from `Z_MIN`, `Z_MAX`, `Z_STEP`, and `Z_STEP_TYPE` parameters
`show_fit`(id[, id_is_idx, zshow, show_fnu, ...])	Make plot of SED and p(z) of a single object
`show_fit_plotly`(id_i[, show_fnu, ...])	Plot SED + p(z) using `plotly` interface
`spatial_statistics`([band_indices, xycols, ...])	Show statistics as a function of position
`sps_parameters`([UBVJ, extra_rf_filters, ...])	Rest-frame colors and population parameters at redshift in `self.zbest` attribute
`standard_output`([zbest, prior, beta_prior, ...])	Full output to `zout.fits` file.
`to_prospector`([id, rd])	Get the photometry and filters in a format that Prospector can use
`write_zeropoint_file`([file])
`zphot_zspec`([selection, min_zphot, zmin, ...])	Make zphot - zspec comparison plot

Attributes Documentation

ARRAY_DTYPE¶: Array data type from ARRAY_NBITS parameter

DEC¶: dec Declination column data from the (translated) catalog (or -1.) with size NOBJ

MW_EBV¶: Galactic extinction E(B-V)

NDRAWS¶: Number of random draws, taken from coeffs_draws attribute

NFILT¶: Number of filters

NOBJ¶: Number of objects in catalog

NTEMP¶: Number of templates

NZ¶: Number of redshift grid points

OBJID¶: id column data from the (translated) catalog with size NOBJ

RA¶: ra Right Ascension column data from the (translated) catalog (or -1.) with size NOBJ

ZML_WITH_BETA_PRIOR = None¶

ZML_WITH_PRIOR = None¶

ZPHOT_AT_ZSPEC = None¶

ZPHOT_USER = None¶

ZSPEC¶: z_spec column data from the (translated) catalog (or -1.) with size NOBJ

izbest¶: index of nearest zgrid value to zbest.

izchi2¶: zgrid index where chi2_fit maximized

izml¶: zgrid index where lnp maximized

lc¶: Filter pivot wavelengths (deprecated, use pivot)

pivot¶: Filter pivot wavelengths, Angstroms

to_flam¶: Conversion factor to \(10^{-19} erg/s/cm^2/Å\)

to_uJy¶: Conversion of observed fluxes to microJansky

zchi2¶: Redshift at izchi2 index.

Methods Documentation

PIT(zspec)[source]¶: PIT function for evaluating the calibration of p(z), as described in Tanaka (2017).

abs_mag(f_numbers=[271, 272, 274], cosmology=None, rest_kwargs={'max_err': 0.5, 'pad_width': 0.5, 'percentiles': [2.5, 16, 50, 84, 97.5], 'simple': False, 'verbose': False})[source]¶

Get absolute mags (e.g., M_UV tophat filters).

Parameters:

f_numberslist: List of either unit-indices of filters in self.RES read from FILTER_FILE or FilterDefinition objects.
cosmologyastropy.cosmology object: If None, default to self.cosmology.
rest_kwargsdict: Arguments passed to rest_frame_fluxes

Returns:

tabastropy.table.Table: Table with rest-frame luminosities. tab.meta includes the filter information.

apply_spatial_offset(f_ix, bin2d, xycols=None)[source]¶: Apply a spatial zeropoint offset determined from spatial_statistics.

cdf_percentiles(cdf_sigmas=array([-5., -4.8, -4.6, -4.4, -4.2, -4., -3.8, -3.6, -3.4, -3.2, -3., -2.8, -2.6, -2.4, -2.2, -2., -1.8, -1.6, -1.4, -1.2, -1., -0.8, -0.6, -0.4, -0.2, 0., 0.2, 0.4, 0.6, 0.8, 1., 1.2, 1.4, 1.6, 1.8, 2., 2.2, 2.4, 2.6, 2.8, 3., 3.2, 3.4, 3.6, 3.8, 4., 4.2, 4.4, 4.6, 4.8, 5.]), **kwargs)[source]¶: Redshifts of PDF percentiles in terms of σ for a normal distribution, useful for compressing the PDF.

compute_best_risk()[source]¶: “Risk” function from Tanaka et al. 2017

compute_full_risk()[source]¶: Full “risk” profile from Tanaka et al. 2017

compute_lnp(prior=False, beta_prior=False, clip_wavelength=1100, in_place=True)[source]¶

Compute log-likelihood from chi2, prior, and TEF terms

Parameters:

priorbool: Apply apparent magnitude prior
beta_priorbool: Apply UV-slope beta prior
clip_wavelengthfloat or None: If specified, set pz = 0 at redshifts beyond where clip_wavelength*(1+z) is greater than the reddest valid filter for a given object.

Returns:

Updates lnp, lnpmax attributes.

compute_tef_lnp(in_place=True)[source]¶: Uncertainty + TEF component of the log likelihood

error_residuals(level=1, verbose=True)[source]¶: Force error bars to touch the best-fit model

evaluate_zml(prior=False, beta_prior=False, clip_wavelength=1100)[source]¶

Evaluate the maximum likelihood redshift with optional priors

Parameters:

priorbool: Apply apparent magnitude prior
beta_priorbool: Apply UV slope beta prior
clip_wavelengthfloat: Parameter for compute_lnp

Returns:

Sets zml attribute

find_peaks(thres=0.8, min_dist_dz=0.1)[source]¶

Find discrete peaks in lnp with peakutils module.

Parameters:

thres: float: Threshold passed to peakutils.indexes.
min_dist_dz: float: Peak separation in units of dz*(1+z)

fit_at_zbest(zbest=None, prior=False, beta_prior=False, get_err=False, clip_wavelength=1100, selection=None, n_proc=0, par_skip=10000, recompute_zml=True, **kwargs)[source]¶

Recompute the fit coefficients at the “best” redshift.

If zbest not specified, then will fit at the maximum likelihood redshift from the zml attribute.

fit_catalog(idx=None, n_proc=4, verbose=True, get_best_fit=True, prior=False, beta_prior=False, **kwargs)[source]¶

This is the main function for fitting redshifts for a full catalog and is parallelized by fitting each redshift grid step separately.

Parameters:

idxarray-like or None: Bool or index array for of a subset of objects if you don’t want to fit the full catalog.
n_procint: The catalog fit is parallelized by precomputing the TemplateGrid photometry and TemplateError function at each redshift in the and deriving the fit coefficients and chi2 for all objects at that redshift. Number of parallel processes to use. If 0, then run in serial mode.
verbosebool: Some control of status messages
get_best_fitbool: Get template coefficients at maximum-likelihood redshift after fitting.
priorbool: Apply apparent magnitude prior
beta_priorbool: Apply UV slope beta priorr

Returns:

Updates various attributes, like chi2_fit, fit_coeffs.

fit_parallel(*args, **kwargs)[source]¶: Back-compatibility, the new function is fit_catalog

fit_phoenix_stars(filter_mask=None, wave_lim=[3000, 40000.0], apply_extcorr=False, sys_err=None, stars=None, sonora=True, just_dwarfs=False, lowz_kwargs={}, subset=None)[source]¶

Fit grid of Phoenix stars

Parameters:

filter_maskbool array: Optional mask array for a subset of the available filters to include
wave_lim(float, float): Only include filters with pivot wavelengths in this range available for the stellar templates
apply_extcorrbool: Apply the MW extinction correction before fitting the templates. This is False by default because likely stars are within the MW and therefore not subject to the full extinction used for extragalactic sources
sys_errfloat: Explicit systematic uncertainty to use, other than params['SYS_ERR']
starslist: List of templates to fit
sonorabool: Use Sonora templates from eazy.templates.load_sonora_stars
just_dwarfsbool: Use the dwarf star template grids from Sonora and LOWZ
lowz_kwargsdict: Keyword arguments passed to eazy.templates.load_LOWZ_templates
subsetarray-like, None: Either a bool or index array of an optional subset of sources to fit. If None, then set object attributes along with the returned dictionary

Returns:

Sets/updates NSTAR, star_templates, star_teff, star_logg,

star_zmet, star_flux attributes independent of subset.

resultdict

Result dictionary where NOBJ is the full catalog or the number of sources in the subset.

star_tnorm : (NOBJ, NSTAR) template normalizations

star_chi2 : (NOBJ, NSTAR) chi-squared of the star template fits

star_min_ix : (NOBJ) Index of the template list at star_min_chi2

star_min_chi2 : (NOBJ) Minimum chi-squared of the template fits

star_min_chinu: (NOBJ) star_min_chi2 / (nusefilt - 1)

star_gal_chi2: (NOBJ) chi-squared of the best-fitting galaxy model
with the same uncertainty weights as the stellar template fit

fit_single_templates(templates=None, tempfilt=None, include_igm=True, norm_deg=2, verbose=True)[source]¶

Fit individual templates on the redshift grid

Parameters:

templateslist, None: List of Template objects
include_igmbool: Include IGM absorption if templates provided
norm_degint: If > 0, normalization of the template grid with numpy.linalg.norm(ord=norm).
tempfiltarray (NZ, NTEMP, NFILT): Template(s) integrated through bandpasses. If not provided, use the internal templates generated upon initialization.

Returns:

tempfiltarray (NZ, NTEMP, NFILT): Integrated template grid
amplarray (NTEMP, NOBJ, NZ): Fit amplitudes
chi2array (NTEMP, NOBJ, NZ): Chi-squared of the fit
logpzarray(NTEMP, NOBJ, NZ): Log probability

get_grizli_photometry(id=1, rd=None, grizli_templates=None)[source]¶: Get photometry dictionary of a given object that can be used with grizli fits.

get_match_index(id=None, rd=None, verbose=True)[source]¶: Get object index of closest match based either on id (exact) or closest to specified (ra, dec) = rd.

get_maxlnp_redshift(prior=False, beta_prior=False, clip_wavelength=1100)[source]¶

Fit parabola to lnp to get continuous max(lnp) redshift.

Parameters:

priorbool
beta_priorbool
clip_wavelengthfloat: Parameters passed to compute_lnp

Returns:

zmlarray (NOBJ): Redshift where lnp is maximized
maxlnparray (NOBJ): Maximum of lnp

iterate_zp_templates(idx=None, update_templates=True, update_zeropoints=True, iter=0, n_proc=4, save_templates=False, error_residuals=False, prior=True, get_spatial_offset=False, spatial_offset_keys={'apply': True}, **kwargs)[source]¶: Iterative detemination of zeropoint corrections

lcz(zbest=None)[source]¶: Redshifted filter wavelengths using zbest.

load_products(compute_error_residuals=False, fitter='nnls', **kwargs)[source]¶

Load results from zout and data FITS files created by standard_output.

Parameters:

compute_error_residualsbool: Run error_residuals after reading data
fitterstr: Least-squares method for template fits. See template_lsq.

Returns:

Sets various internal attributes

make_csv_catalog(include_zeropoints=True, scale_to_ujy=True)[source]¶

Make a standardized catalog table in CSV format

Parameters:

include_zeropointsbool: Include zeropoint factors in flux+err columns
scale_to_ujybool: Scale photometry to microJansky units using the PRIOR_ABZP parameter

Returns:

tab, transTable: tab is the photometric table. trans is the column translations that can be put into a eazy.param.TranslateFile.

observed_frame_fluxes(f_numbers=[325], filters=None, verbose=True, n_proc=-1, percentiles=[2.5, 16, 50, 84, 97.5])[source]¶

Observed-frame fluxes in additional (e.g., unobserved) filters

Parameters:

f_numbers: list: Unit-index of filters specified in params['FILTER_FILE'].
filters: list, optional: Manually-specified FilterDefinition objects. If specified, then supercedes f_numbers.
n_proc: int: Number of processors passed to TemplateGrid.
percentiles: list or None: If specified, compute percentiles of the template fluxes based on the random template coefficient draws in coeffs_draws attribute.

Returns:

tab: astropy.table.Table: Table of the observed-frame flux densities with metadata describing the filters.

prior_beta(w1=1350, w2=1800, dw=100, sample=None, width_params={'center': -1.5, 'k': -5, 'sigma0': 20, 'sigma1': 0.5, 'z_split': 4})[source]¶

Prior on UV slope β to disfavor red low-z galaxies put at z>4 with unphysically-red colors.

Beta is defined here as the logarithmic slope between two filters with width dw evaluated at wavelengths w1 and w2, set closer to the Lyman break than the usual definition to handle cases at z > 10 where the slope might be constrained by only a single filter.

To evaluate the prior, the likelihood of the observed β(z) is computed from a normal distribution with redshift-dependent width set by a logistic function that has width sigma0 at z < z_split and sigma1 otherwise. center specifies the middle of the beta distribution.

The prior function is the cumulative probability P(>β) for each object at each redshift grid point.

import numpy as np
import matplotlib.pyplot as plt

k = -5
z_split = 4
sigma0 = 20
sigma1 = 0.5
center = -1.5

zgrid = np.arange(0.1, 6, 0.010)

sigma_beta_z = 1./(1+np.exp(-k*(zgrid - z_split)))*sigma0
sigma_beta_z += sigma1

fig, ax = plt.subplots(1,1,figsize=(6,4))

ax.plot(zgrid, zgrid*0+center, color='k')
ax.fill_between(zgrid, center-sigma_beta_z,
                 center+sigma_beta_z, color='k', alpha=0.1)

for k in [-2, -5, -8]:
    sigma_beta_z = 1./(1+np.exp(-k*(zgrid - z_split)))*sigma0
    sigma_beta_z += sigma1

    ax.plot(zgrid, center+sigma_beta_z, label=f'k = {k}')

ax.legend()
ax.grid()
ax.set_xlabel('redshift')
ax.set_ylabel('UV slope beta prior')
fig.tight_layout(pad=0.5)

(Source code, png, hires.png, pdf)

Parameters:

w1, w2float: Rest wavelength of blue and red “filters” for computing UV slope
dwfloat: Width of tophat filters
samplearray: Boolean or index array for computing only a subset of objects in the catalog
width_paramsdict: Parameters of the prior

Returns:

p_betaarray (NOBJ, NZ): Linear prior probability

pz_percentiles(percentiles=[2.5, 16, 50, 84, 97.5], oversample=5, selection=None)[source]¶

Compute percentiles of the final PDF(z)

Parameters:

percentileslist: Percentiles to compute from the p(z) distribution
oversampleint: Oversampling factor of the redshift grid for smoother interpolation
selectionarray-like: Subsample selection array (bool or indices)

Returns:

zlimits(NOBJ, M) array: Where M is the number of percentiles requested.

read_catalog(verbose=True)[source]¶

Read catalog specified in params['CATALOG_FILE'].

If the catalog is in a format other than FITS, the file format passed to astropy.table.Table.read is indicated by the params['CATALOG_FORMAT'] parameter, which defaults to ascii.commented_header.

All catalogs must have an id column, either explicity or “translated” with the TranslateFile.

While not required, additional columns z_spec, ra, dec, x, y are used in some functions and should be included in the catalog or translated.

static read_prior(zgrid=None, prior_file='templates/prior_F160W_TAO.dat', prior_floor=0.01, **kwargs)[source]¶

Read an eazy apparent magnitude prior file

Parameters:

zgridarray-like: Redshift grid
prior_filestr: Filename
prior_floorfloat: Forced minimum of (normalized) prior

Returns:

prior_magsarray, (M): Apparent magnitudes of the prior grid for M mags
prior_dataarray, (NZ, M): Linear \(P(m, z)\)

# Show the prior

import os
import numpy as np
import matplotlib.pyplot as plt
from eazy import utils, photoz

zgrid = utils.log_zgrid((0.001, 7), 0.01)

path = utils.path_to_eazy_data()
prior_file = os.path.join(path, 'templates/prior_F160W_TAO.dat')

prior_mags, prior_data = photoz.PhotoZ.read_prior(zgrid=zgrid,
                            prior_file=prior_file,
                            prior_floor=1.e-2)

fig, ax = plt.subplots(1,1,figsize=(6,4))

for i, m in enumerate(prior_mags):
    if (m > 28.1) | (m - np.floor(m) > 0.1):
        continue

    ax.plot(np.log(1+zgrid), prior_data[:,i],
            label=f'm = {m:.1f}', color=plt.cm.rainbow((m-15)/13))

for m_i in np.arange(26.2, 26.9, 0.2):
    prior_m = photoz.PhotoZ._get_prior_mag(m_i, prior_mags,
                                       prior_data)
    ax.plot(np.log(1+zgrid), prior_m, color='k', linewidth=1,
        label=f'{m_i:.1f}', alpha=0.2)

xt = np.arange(0,7.1,1)
ax.set_xticks(np.log(1+xt))
ax.set_xticklabels(xt.astype(int))
ax.set_xlim(0, np.log(8))

ax.grid()
ax.legend(ncol=3, fontsize=8, title=os.path.basename(prior_file))
ax.set_xlabel('redshift')
ax.set_ylabel('Mag prior')
ax.semilogy()
fig.tight_layout(pad=0.1)

(Source code)

read_zeropoint(zeropoint_file='zphot.zeropoint')[source]¶

Read zphot.zeropoint file with multiplicative flux corrections

The file has format

F205  1.1
F{FN} {scale}

where FN is the filter number in the filter (and translate) file and scale is multiplied to the fluxes and uncertainties of that filter.

Parameters:

zeropoint_filestr: Filename

residuals(selection=None, minsn=3, resid_sig_clip=5, update_zeropoints=False, update_templates=False, ref_filter=None, correct_zp=True, n_knots=-1, use_bspline=False, logspline=True, wlimits=[1000, 30000.0], runmed_kwargs={'NBIN': 16}, zpanel_kwargs={'catastrophic_limit': 0.15, 'zmax': 4, 'zmin': 0}, full_label=None, ignore_zeropoint=False, ignore_spline=False, run_iterative=True, skip_filters=[], iterative_nsteps=3, **kwargs)[source]¶

Show residuals and compute zeropoint offsets

selection=None update_zeropoints=False update_templates=False ref_filter=226 correct_zp=True NBIN=None

rest_frame_SED(idx=None, norm_band=155, c='k', min_sn=3, median_args={'NBIN': 50, 'reverse': False, 'use_median': True, 'use_nmad': True}, get_templates=True, make_figure=True, scatter_args=None, show_uvj=True, axes=None, **kwargs)[source]¶

Make Rest-frame SED plot

idx: selection array

rest_frame_fluxes(f_numbers=[153, 154, 155, 161], pad_width=0.5, max_err=0.5, ndraws=1000, percentiles=[2.5, 16, 50, 84, 97.5], simple=False, verbose=1, n_proc=-1, par_skip=10000, **kwargs)[source]¶

Rest-frame fluxes, refit by down-weighting bands far away from the desired RF band.

Parameters:

f_numberslist

List of either unit-indices of filters in self.RES read from params['FILTER_FILE'] or FilterDefinition objects.

pad_widthfloat

Padding around rest-frame wavelength to down-weight observed filters.

max_errfloat

Increased uncertainty outside of pad_width.

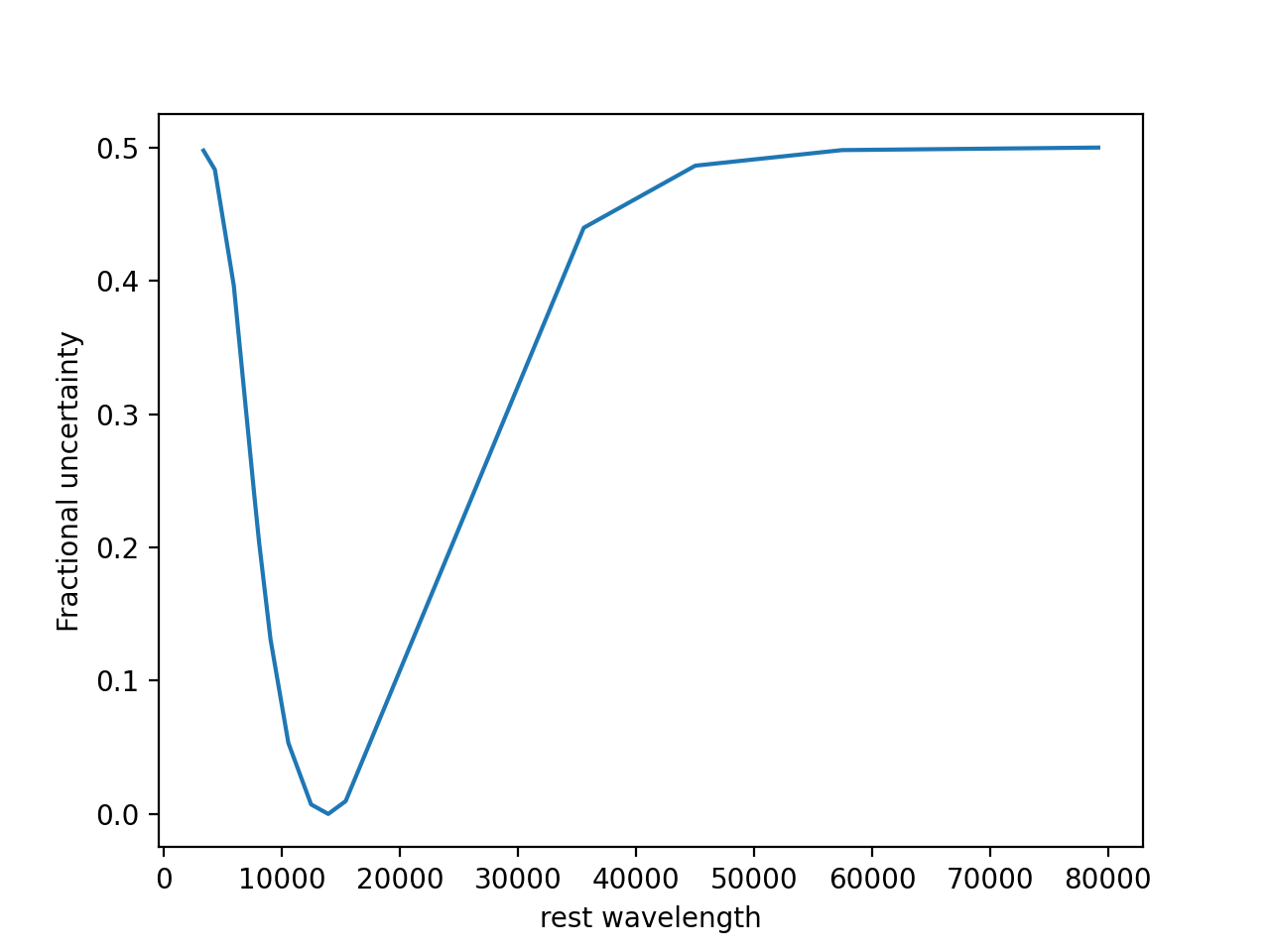

The modified uncertainties are computed as follows:

import numpy as np
import matplotlib.pyplot as plt

pad_width = 0.5
max_err = 0.5
z = 1.5

# Observed-frame pivot wavelengths
lc_obs = np.array([10543.5, 12470.5, 13924.2, 15396.6,
                   7692.3,  8056.9,  9032.7, 4318.8,
                   5920.8, 3353.6, 35569.3, 45020.3,
                   57450.3, 79157.5])

lc_rest = 5500. # e.g., rest V
x = np.log(lc_rest/(lc_obs/(1+z)))
grow = np.exp(-x**2/2/np.log(1/(1+pad_width))**2)
TEFz = (2/(1+grow/grow.max())-1)*max_err
so = np.argsort(lc_obs)

_ = plt.plot(lc_obs[so], TEFz[so])
_ = plt.xlabel('rest wavelength')
_ = plt.ylabel('Fractional uncertainty')

(Source code, png, hires.png, pdf)

ndrawsint

Number of random draws for simple=False fits, which does not have to be the same as that used for coeffs_draws attribute since the template coefficients are recalculated for every object. If simple=True, then draws are fixed in the stored coeffs_draws attribute.

percentileslist

Percentiles to return of the computed rest-frame fluxes drawn from the fits including the observed uncertainties

simplebool

If True then just return the rest-frame fluxes of the currrent best fits rather than doing the filter reweighting.

fitterstr

Least-squares method for template fits. See template_lsq.

renorm_tbool

Renormalize templates before fitting

hess_thresholdfloat

Hessian threshold

n_proc, par_skipint, int

Number of processes to use. If zero, then run in serial mode. Otherwise, will run in parallel threads splitting the catalog into NOBJ/par_skip pieces.

Returns:

rf_tempfiltarray (NZGRID, NTEMP, len(f_numbers)): Array of the integrated template fluxes
lc_restarray (len(f_numbers)): Rest-frame filter pivot wavelengths
rf_fluxesarray (NOBJ, len(f_numbers), len(percentiles)): Rest-frame fluxes

save_templates(prefix='corr_', ext=None, format=None, overwrite=True, make_param=True)[source]¶: Write scaled versions of the templates to files, including a templates definition file

set_ok_data()[source]¶

Determine valid catalog data:

Positive uncertainties

Finite flux densities and uncertainties (numpy.isfinite)

Flux densities greater than NOT_OBS_THRESHOLD parameter

Returns:

nusefiltarray-like

Number of valid filters per object. Also sets the following attributes:

ok_data : boolean array with dimensions (NOBJ, NFILT)

nusefilt : number of valid filters

lc_reddest : Pivot wavelength of reddest valid filter

set_prior(verbose=True)[source]¶

Read param['PRIOR_FILE']

Sets prior_mags, prior_data, prior_mag_cat, full_logprior attributes

set_sys_err(positive=True, in_place=True)[source]¶

Include systematic error in uncertainties from param['SYS_ERR'].

Parameters:

positivebool: Only apply for positive fluxes in fnu attribute.
in_placebool: Set efnu attribute. Or if False, return array as below.

Returns:

efnuarray: Full uncertainty: \(\mathrm{efnu}^2 = \mathrm{efnu\_orig}^2 + (\mathrm{SYS\_ERR}*\mathrm{fnu})^2\)

set_template_error(TEF=None, compute_tef_lnp=True)[source]¶

Set the Template Error Function

Parameters:

TEFeazy.templates.TemplateError or None: If not specified, read from params['TEMP_ERR_FILE'] and scale by params['TEMP_ERR_A2'].
compute_tef_lnpbool: Compute the likelihood normalization correction for the TemplateError function.

Returns:

Sets TEF, TEFgrid and compute_tef_lnp attributes

set_zgrid()[source]¶: Set zgrid and trdz attributes from Z_MIN, Z_MAX, Z_STEP, and Z_STEP_TYPE parameters

show_fit(id, id_is_idx=False, zshow=None, show_fnu=0, get_spec=False, xlim=[0.3, 9], show_components=False, show_redshift_draws=False, draws_cmap=None, ds9=None, ds9_sky=True, add_label=True, showpz=0.6, logpz=False, zr=None, axes=None, template_color='#1f77b4', figsize=[8, 4], ndraws=100, fitter=None, renorm_t=None, hess_threshold=None, show_missing=True, maglim=None, show_prior=False, show_stars=False, delta_chi2_stars=-20, max_stars=3, show_upperlimits=True, snr_thresh=2.0, with_tef=True, **kwargs)[source]¶

Make plot of SED and p(z) of a single object

Parameters:

idint

Object ID corresponding to columns in self.OBJID. Or if id_is_idx is set to True, then is zero-index of the desired object in the catalog array.

id_is_idxbool

See id.

zshowNone, float

If a value is supplied, compute the best-fit SED at this redshift, rather than the value in the self.zbest array attribute.

show_fnubool, int

0: make plots in f-lambda units of 1e-19 erg/s/cm2/A.
1: plot f-nu units of uJy
2: plot “nu-Fnu” units of uJy/micron.

get_specbool

If True, just return the SED data rather than make a plot

xlimlist

Wavelength limits to plot, in microns.

show_componentsbool

Show all of the individual SED components, along with their combination.

show_redshift_drawsbool

Show templates at different redshifts drawn from the PDF

draws_cmapcolor map

Color map for show_reshift_draws=True, defaults to matplotlib.pyplot.cm.rainbow.

showpzbool, float

Include p(z) panel. If a float, then scale the p(z) panel by a factor of showpz relative to half of the full plot width.

logpzbool

Logarithmic p(z) plot

zrNone or [z0, z1]

Range of redshifts to show in p(z) panel. If None, then show the full range in self.zgrid.

axesNone or list

If provided, draw the SED and p(z) panels into the provided axes. If just one axis is provided, then just plot the SED.

template_colorcolor

Something matplotlib recognizes as a color

figsize(float, float)

Figure size

ndrawsint

Number of random draws for template coefficient uncertainties

fitterstr

Least-squares method for template fits. See template_lsq.

renorm_tbool

Renormalize templates before fitting

hess_thresholdfloat

Hessian threshold for removing degenerate templates

show_missingbool

Show points for “missing” data

maglim(float, float)

AB magnitude limits for second axis if show_fnu=1.

show_priorbool

Show the apparent magnitude prior on the p(z) panel

show_starsbool

Show stellar template fits given delta_chi2_stars

delta_chi2_starsfloat

Show stellar templates where star_chi2 - gal_chi2 < delta_chi2_stars where gal_chi2 is the chi-squared value from the galaxy template fit at the plotted redshift.

max_starsint

Maximum number of stars to show that satisfy delta_chi2_stars threshold

show_upper_limitsbool

If False, the upper limit errorbar measurements will not be shown.

snr_threshfloat

Sets the threshold in SNR required for a detection. This doesn’t affect anything related to the fits but non-detections are plotted in a lighter color.

with_tefbool

Plot uncertainties including template error function at z.

Returns:

figmatplotlib.figure.Figure

Figure object

datadict

Dictionary of fit data (photometry, best-fit template, etc.)

Key	Description
ix	catalog index
id	object id
z	redshift (see `zshow`)
z_spec	spectroscopic redshift
pivot	pivot wavelengths of filter bandpasses
model	best-fit template flux densities
emodel	uncertainties on model from fit covariance
fobs	observed photometry
efobs	observed uncertainties (sys_err but not TEF)
valid	fobs/efobs indicate valid data
tef	TEF evaluated at `z`
templz	observed-frame wavelength of full template spectrum
templf	flux density of best-fit template
show_fnu	`show_fnu` as passed
flux_unit	units of flux density data
wave_unit	units of wavelength data
chi2	\(\chi^2\) of the best-fit template
coeffs	template coefficients

show_fit_plotly(id_i, show_fnu=0, row_heights=[0.6, 0.4], zrange=None, template='plotly_white', showlegend=False, show=False, vertical=True, panel_ratio=[0.5, 0.5], subplots_kwargs={}, layout_kwargs={'showlegend': False, 'template': 'plotly_white'}, **kwargs)[source]¶: Plot SED + p(z) using plotly interface

spatial_statistics(band_indices=None, xycols=None, is_sky=True, nbin=(50, 50), bins=None, apply=False, min_sn=10, catalog_mask=None, statistic='median', zrange=[0.05, 4], verbose=True, vm=(0.92, 1.08), output_suffix='', save_results=True, make_plot=True, cmap='plasma', figsize=5, plot_format='png', close=True, scale_by_uncertainties=False)[source]¶

Show statistics as a function of position

Parameters:

band_indiceslist of int, None: Indices of the bands to process, in the order of the self.pivot, self.filters, etc. lists. If None, do all of them.
statisticstr: See scipy.stats.binned_statistic_2d.

sps_parameters(UBVJ=[153, 154, 155, 161], extra_rf_filters=[270, 274, 120, 121, 156, 157, 158, 159, 160, 161, 162, 163], cosmology=None, simple=False, rf_pad_width=0.5, rf_max_err=0.5, percentile_limits=[2.5, 16, 50, 84, 97.5], template_fnu_units=<Quantity 1. solLum / Hz>, vnorm_type=2, n_proc=-1, coeffv_min=0, **kwargs)[source]¶

Rest-frame colors and population parameters at redshift in self.zbest attribute

Parameters:

UBVJ(int, int, int, int)

Filter indices of U, B, V, J filters in params['FILTER_FILE'].

extra_rf_filterslist

If specified, additional filters to calculate rest-frame fluxes

LIR_wave(min_wave, max_wave)

Limits in microns to integrate the far-IR SED to calculate LIR. (removed to always use tabulated in ``param.fits`` file)

cosmologyastropy.cosmology

Cosmology for calculating luminosity distances, etc. Defaults to flat cosmology with H0, OMEGA_M, OMEGA_L from the parameter file.

simple, rf_pad_width, rf_max_errbool, float, float

See rest_frame_fluxes.

template_fnu_unitsastropy.units.Unit, None

Units of templates when converted to flux_fnu, e.g., \(L_\odot / Hz\) for FSPS templates. If None, then parameters are computed normalizing fits to the V band based on vnorm_type.

vnorm_type1 or 2

V-band normalization type for the tabulated parameters, if template_fnu_units = None. The fit coefficients are first normalized to the template V-band, i.e., such that they give each template’s contribution to the observed rest-frame V-band. Then the population parameters are estimated with these coefficients as follows.

vnorm_type = 1

coeffs_norm: coefficients renormalized to template rest-frame V-band

tab: table of parameters associated with the templates
Lv: V-band luminosity derived from the rest-frame V flux inferred from the photometry
>>> Lv_norm = (coeffs_norm * tab['Lv']).sum()
>>> mass_norm = (coeffs_norm * tab['mass']).sum()
>>> mass = (mass_norm / Lv_norm) * Lv

vnorm_type = 2

coeffs_norm: coefficients renormalized to template rest-frame V-band

tab: table of parameters associated with the templates
Lv: V-band luminosity derived from the rest-frame V flux inferred from the photometry
>>> mass_norm = (coeffs_norm * tab['mass'] / tab['Lv']).sum()
>>> mass = (mass_norm / Lv_norm) * Lv

The latter, vnorm_type = 2, is the conceptually preferred method, though the former should be used with the fsps_QSF_12_v3.param template set.

coeffv_minfloat

Mininum contribution to the observed v-band flux that contributes to the parameter estimates. Set to a small positive number to limit the contribution of extreme (dusty) M/Lv SFR/Lv templates to the derived parameters.

n_procint

Number of parrallel processes

Returns:

tab: astropy.table.Table: Table with rest-frame fluxes and population synthesis parameters

standard_output(zbest=None, prior=False, beta_prior=False, UBVJ=[153, 154, 155, 161], extra_rf_filters=[270, 274, 120, 121, 156, 157, 158, 159, 160, 161, 162, 163], cosmology=None, simple=False, rf_pad_width=0.5, rf_max_err=0.5, save_fits=True, get_err=True, percentile_limits=[2.5, 16, 50, 84, 97.5], n_proc=0, clip_wavelength=1100, absmag_filters=[271, 272, 274], run_find_peaks=False, **kwargs)[source]¶

Full output to zout.fits file.

First refits the coefficients at zml and optionally zbest.

Computes redshift statistics and then sends arguments to sps_parameters for rest-frame colors, masses, etc.

Parameters:

zbestarray (NOBJ), None

If provided, derive properties at this specified redshift. Otherwise, defaults in internal zml maximum-likelihood redshift.

priorbool

Include the apparent magnitude prior in lnp.

beta_priorbool

Include the UV slope prior in lnp (prior_beta).

UBVJlist of 4 ints

Filter indices of U, B, V, J filters in params['FILTER_FILE'].

extra_rf_filterslist

If specified, additional filters to calculate rest-frame fluxes

cosmologyastropy.cosmology object

Cosmology for calculating luminosity distances, etc. Defaults to flat cosmology with H0, OM, OL from the parameter file.

LIR_wave(min_wave, max_wave)

Limits in microns to integrate the far-IR SED to calculate LIR. removed to always use LIR in ``param.fits`` file

simple, rf_pad_width, rf_max_errbool, float, float

See rest_frame_fluxes.

save_fitsbool / int

0: Return just the parameter table
1: Return the parameter table and data HDU and write ‘.data.fits’ file
2: Same as above, but also include template coeffs at all redshifts, which can be a very large array with dimensions (NOBJ, NZ, NFILT).

get_errbool

Get parameter percentiles at percentile_limits.

absmag_filterslist

Optional list of filters to compute absolute (AB) magnitudes

Returns:

tabastropy.table.Table: Table object. Output columns described here.
hduastropy.io.fits.HDUList or None: More fit data (coeffs, zgrid) needed for recreating fit state with load_products. See save_fits.

to_prospector(id=None, rd=None)[source]¶: Get the photometry and filters in a format that Prospector can use

write_zeropoint_file(file='zphot.zeropoint.x')[source]¶

zphot_zspec(selection=None, min_zphot=0.02, zmin=0, zmax=4, include_errors=True, **kwargs)[source]¶: Make zphot - zspec comparison plot

Navigation

PhotoZ¶
